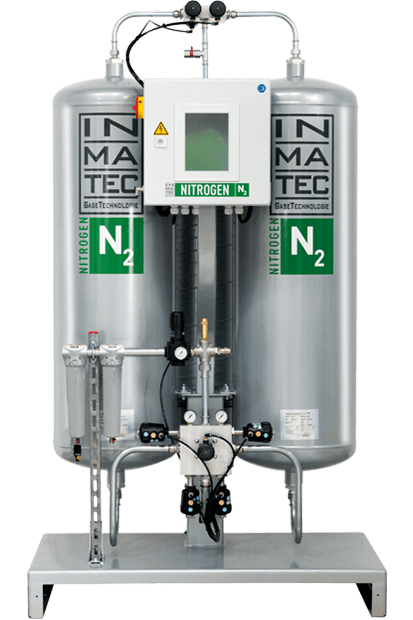

The PN series offers all of the advantages of a fully integrated nitrogen generating system. The continual measurement and monitoring of all operating values offers the highest possible protection for the whole production process. All measured values are logged and displayed on the touch control panel and are also available for further processing via the remote control operation (connect).
The PN series can be monitored and operated from any computer workstation in the world through the latest networking technology.
The industry standard 4.0 is a real innovation for your security.
The advantages and effectiveness of the PN nitrogen generators guarantee savings from the first minute.
PSA N2 generators from OXYMAT have the lowest energy consumption on the market. Our continuous R&D has resulted in power consumption down to 0.22 kW/Nm3 @ 95% purity
Our production is highly standardised. All materials are prepared according to offshore specifications. Piping is made from SS316L and surfaces are powder coated in C4 grade paint.
Our service team is standing by to assist you remotely 24/7. We carry out service worldwide and work with our many service partners across the globe to keep your nitrogen generation plant operational.
Multilingual touch control panel with nitrogen measurement, low maintenance stainless steel valve technology, long life activated carbon molecular sieve, input and output filtration, long-term data storage.
| Nitrogen purity (%) | 95,0 | 97,0 | 98,0 | 99,0 | 99,5 | 99,9 | 99,99 | 99,995 | 99,999 |
|---|---|---|---|---|---|---|---|---|---|
| Quality | 2,0 | 2,5 | 3,0 | 4,0 | 4,5 | 5,0 | |||
| Residual O2 (PPM) | 10.000 | 5.000 | 1.000 | 100 | 50 | 10 | |||
| PN 20 | 10,80 | 8,70 | 7,90 | 5,80 | 5,10 | 3,20 | 1,30 | 1,10 | 0,85 |
| PN 30 | 16,50 | 13,40 | 12,00 | 9,00 | 7,70 | 4,80 | 2,40 | 1,80 | 1,30 |
| PN 40 | 20,80 | 17,10 | 15,80 | 12,60 | 9,50 | 6,30 | 3,20 | 2,50 | 1,80 |
| PN 60 | 31,20 | 26,60 | 23,70 | 18,90 | 14,20 | 9,50 | 4,80 | 3,60 | 2,40 |
| PN 90 | 49,20 | 40,10 | 35,60 | 28,40 | 22,10 | 12,60 | 6,30 | 4,80 | 3,20 |
| PN 150 | 84,00 | 59,90 | 53,80 | 46,60 | 37,80 | 23,20 | 11,70 | 8,80 | 5,80 |
| PN 220 | 105,00 | 84,00 | 76,00 | 64,00 | 52,00 | 37,60 | 23,60 | 16,80 | 10,70 |
| PN 270 | 141,00 | 117,00 | 98,00 | 80,00 | 68,00 | 48,20 | 27,90 | 21,00 | 14,20 |
| PN 350 | 211,00 | 174,00 | 146,00 | 115,00 | 100,00 | 71,90 | 41,80 | 31,50 | 21,30 |
| PN 500 | 260,00 | 215,00 | 188,00 | 143,00 | 120,00 | 86,00 | 50,50 | 38,50 | 26,50 |
| PN 750 | 372,00 | 308,00 | 250,00 | 206,00 | 170,00 | 128,00 | 74,10 | 56,00 | 38,00 |
| PN 1000 | 440,00 | 366,00 | 320,00 | 240,00 | 200,00 | 151,50 | 88,00 | 66,50 | 45,00 |
| PN 1500 | 630,00 | 522,00 | 457,00 | 350,00 | 285,00 | 216,80 | 125,70 | 94,80 | 64,00 |
| PN 2000 | 860,00 | 730,00 | 635,00 | 475,00 | 395,00 | 298,00 | 170,00 | 130,00 | 90,00 |
| PN 2500 | 1050,00 | 915,00 | 800,00 | 610,00 | 510,00 | 375,00 | 215,00 | 165,00 | 112,00 |
| PN 3000 | 1250,00 | 1040,00 | 910,00 | 700,00 | 570,00 | 430,00 | 250,00 | 188,00 | 125,00 |
