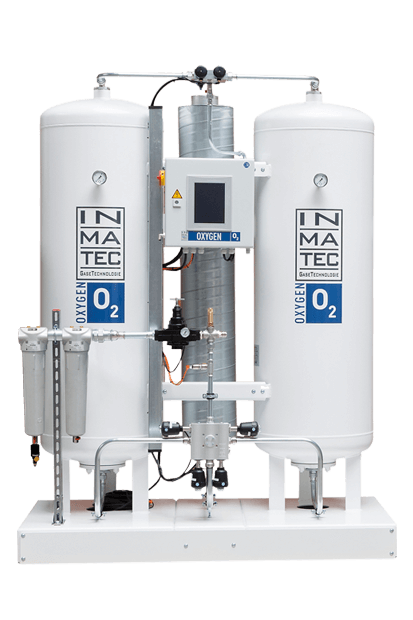

The models of the product line offer an all inclusive entry into the world of oxyge generation. The PO generators also give priority to user-friendliness. The touch control panel and the connect option therefore ensure quick and straightforward access to all relevant operating values - on-site and from anywhere in the world.
The efficiency of on-site oxygen generation is significantly increased by the PO technology that is used. The operating costs are reduced considerably thanks to the innovative flow and vortex technology. This is possible due to the use of less compressed air, which is needed to separate the nitrogen molecules from the oxygen molecules. Using EEC technology developed by INMATEC, more oxygen can be generated with lower compressed air requirements.
Various options of the PO line such as the Auto Pure system and enrichment with hydrogen via a hydrogen catalyst enable adaptation to your needs.
PECTHERM PSA O2 generators come with the lowest energy consumption on the market. Thanks to our continuous R&D, power consumption is as low as 0.55 kW/Nm3 @ 93% purity.
Our production is streamlined to a great extent. All materials meet offshore specifications which ensures superior quality. Pipe sets are made from SS316L, surfaces are powder coated in C4 grade paint.
If you are in urgent need of service our service team is ready to assist you remotely 24/7. Together with our numerous service partners worldwide we carry out service to keep your oxygen plant operational.
Multilingual touch control panel, low maintenance stainless steel valve technology, long life activated carbon molecular sieve, programmable control system, AutoPure technology.
| Oxygen content (%) | 90,0 | 93,0 | 95,0 |
|---|---|---|---|
| PO 20 | 1,2 | 1,1 | 1,0 |
| PO 40 | 2,5 | 2,3 | 2,0 |
| PO 60 | 3,6 | 3,3 | 3,0 |
| PO 90 | 5,4 | 5,0 | 4,3 |
| PO 150 | 7,8 | 7,2 | 6,7 |
| PO 220 | 9,0 | 8,4 | 7,5 |
| PO 270 | 12,0 | 11,0 | 10,0 |
| PO 350 | 14,5 | 13,2 | 12,0 |
| PO 500 | 18,5 | 16,8 | 15,5 |
| PO 750 | 29,3 | 26,6 | 24,2 |
| PO 1000 | 36,0 | 34,0 | 31,0 |
| PO 1500 | 54,0 | 50,0 | 45,0 |
| PO 2000 | 74,0 | 67,0 | 61,0 |
